An editorial assessment of documented capabilities and ownership trade-offs. This is not a hands-on test result or a measurement of reliability.
Task capability 30%7.7
Six-axis motion supports useful lightweight learning projects.
Navigation & control 20%8.0
Several code and graphical routes provide flexibility.
Ownership & upkeep 20%6.8
Servo, cable and lifespan considerations limit carefree ownership.
Setup & usability 15%6.7
Mounting, tooling and setup require technical work.
Documentation & support clarity 15%7.8
Specifications and model-specific documentation expose useful limits.
Compare scores within the same product category. Small decimal differences should not override your needs or the evidence limits.
How the Standpoint Score works
We score five aspects of the documented product on a 0–10 scale, then calculate a weighted total:
- Task capability30% of the total
- Navigation & control20% of the total
- Ownership & upkeep20% of the total
- Setup & usability15% of the total
- Documentation & support clarity15% of the total
This product’s 7.4/10 is a provisional research assessment. It does not claim measured performance, tested reliability or a verified customer satisfaction rate. Compare it with products in the same category, and read each criterion’s reasoning above.
Read the full rubric and score bands ↗The ownership case.
myCobot 280 M5 is a sensible candidate for learning six-axis manipulation and building modest desktop demonstrations with lightweight tools and objects.
Reasons to consider it
- Six-axis orientation
- Multiple programming options
- Compact platform
Go in knowing
- 250g includes the tool assembly
- Not industrial production duty
- Calibration and safeguards remain necessary
The specification sheet.
Published specifications from the linked sources. Configurations and availability can differ by country.
- Axes
- 6
- Working radius
- 280 mm
- Payload
- 250 g
- Referenced controller
- M5
A small arm for learning the whole system

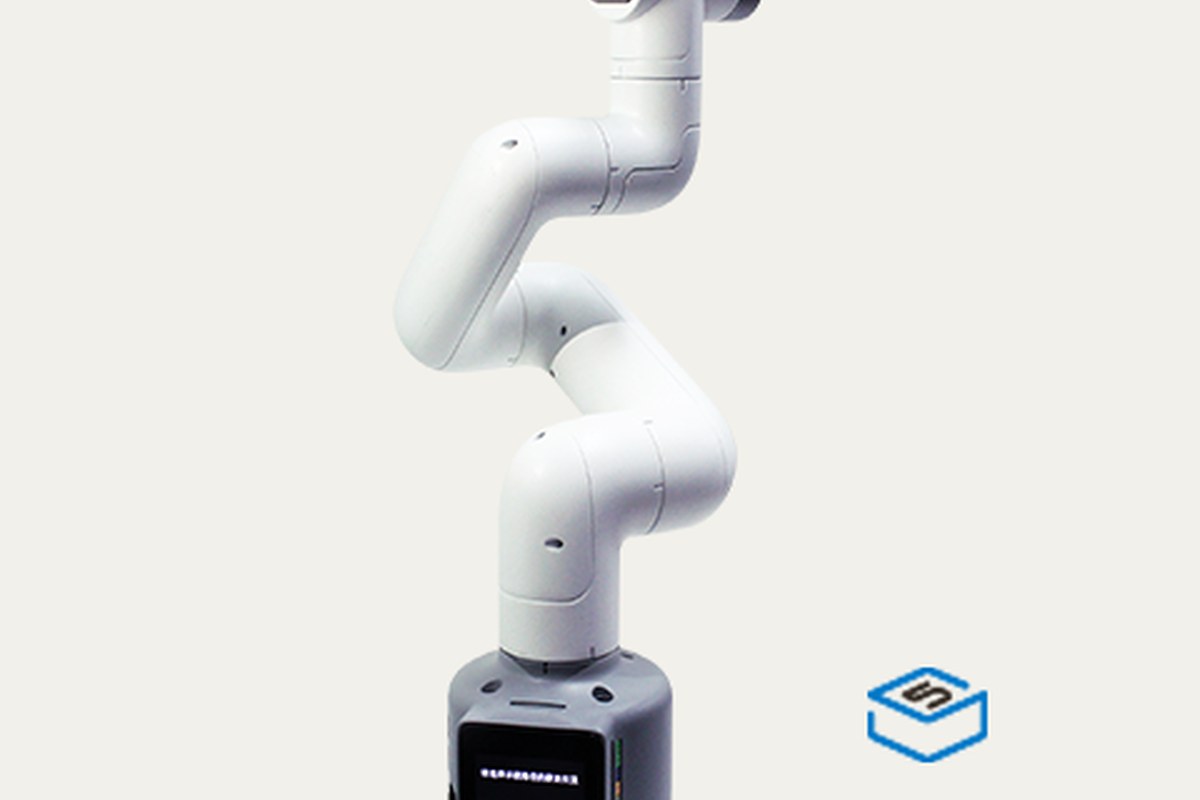

The myCobot 280 M5 is a compact six-axis arm intended for education, research, demonstrations and maker projects. Elephant Robotics publishes a 280mm working radius and a 250g payload for the referenced version, alongside support for several programming environments and ROS-related development. Those figures place it firmly in lightweight manipulation rather than general workshop lifting. Its attraction is access to a complete articulated robot that can sit on a modest bench and expose useful control concepts. We have not operated or measured the arm. This review evaluates the documented platform and the integration work behind a successful project, with particular attention to the difference between moving an arm and building a dependable application around it.
Six axes provide orientation, not unlimited reach
An articulated arm can position and orient a tool in ways that a simpler four-axis mechanism cannot. That flexibility is useful for teaching coordinate frames, joint motion and tool orientation. It also introduces singularities, joint limits and configurations where a small tool movement can require a large joint change. A quoted working radius is not a guarantee that every point within an imagined sphere is reachable with every orientation. Study the workspace and joint limits before designing a fixture. A task that looks easy in a drawing may place the wrist at an awkward angle. We would begin with a simple reachable region and expand deliberately, rather than assume six axes remove the need for mechanical planning.
The 250g budget includes the tool
A lightweight arm's payload must be considered together with the gripper, bracket, cabling and object. A tool that consumes much of the allowance leaves little capacity for the workpiece. Position and leverage matter as well: an extended object can impose a different load from a compact item close to the flange. Obtain the current load guidance for the exact model and avoid treating the headline as permission for any 250g arrangement. A tabletop sorting project using small parts is a plausible match; manipulating ordinary workshop tools may not be. We have not measured load-dependent performance. The useful purchase decision starts with the complete end-effector and object assembly, not the mass of the object alone.
Repeatability is not absolute accuracy
The published positioning figure should not be interpreted as proof that a coordinate entered from a ruler will place the tool exactly where expected. Repeatability, calibration, tool offsets, joint compliance and fixture accuracy all contribute to the final result. A robot may return consistently to a taught point while still differing from an ideal mathematical coordinate. For education, that distinction is valuable. For a practical process, it determines whether a jig, sensor or calibration procedure is required. We would test repeated approaches from different directions and at several payloads before relying on a tight tolerance. No such measurements were performed here. The arm's accessibility makes it a useful platform for investigating these issues, not a reason to ignore them.
Software choice should follow the project
Elephant Robotics lists graphical tools, Python and other languages, plus ROS-related resources. That breadth is attractive, but the buyer needs one reproducible workflow rather than a catalogue of logos. Confirm the controller revision, supported firmware and exact examples for the M5 version. Tutorials for Raspberry Pi or other myCobot variants may not apply unchanged. Start with a known connection and a simple motion, then add gripper control, sensing or planning one layer at a time. Keep versions and configuration recorded so another person can reproduce the setup. We have not tested the current software stack. Documentation accessibility and the clarity of examples are material parts of this product, because integration effort can exceed the time spent physically assembling the application.
An arm does not arrive understanding objects
Object recognition, pick-and-place and visually guided manipulation require more than the arm itself. A camera, lighting, calibration, gripper and software must work together. A demonstration video may include accessories and carefully prepared objects that are absent from the base package. Define the required task and ask which components are included. For a first project, fixed positions and a simple fixture can provide a more reliable learning path than unconstrained visual picking. The arm's open interfaces make advanced work possible, but possibility is not a finished capability. We would judge a proposed application by its complete bill of materials and recovery logic rather than assume a robot with six joints can independently decide how to grasp arbitrary objects.
Bench safety remains necessary at small scale
A compact lightweight arm can still pinch fingers, strike an object or move unexpectedly after a software command. Mount it securely, keep the operating envelope clear and follow the manufacturer's safety instructions. Begin at conservative speeds with a clear stop procedure and avoid placing hands near moving joints or the tool. The word collaborative in marketing does not certify every user-built application as safe around people. A sharp tool, fragile workpiece or poorly secured gripper can change the risk substantially. We have not validated protective functions. In a classroom, supervision and a controlled workspace are part of the system. The robot's modest size is useful for teaching, but it should not encourage casual handling while powered and moving.
Service life and realistic duty
The referenced manufacturer table includes a working-lifespan figure, which is an unusual reminder that this is not an arm to assume will perform industrial production duty indefinitely. Ask Elephant Robotics how that figure applies to the current version, workload and maintenance. Confirm the availability of servos, cables, controller components and repair support in your region. A light educational demonstration and continuous repetitive operation create different demands. Keep loads within the documented envelope and inspect mounting and wiring regularly. We have not measured endurance or wear. The low barrier to desktop experimentation is valuable, but the purchase should be made with a realistic understanding of duty, repairability and the difference between a teaching platform and a production cell.
Our research verdict
myCobot 280 M5 is a sensible candidate for learning six-axis manipulation and building modest desktop demonstrations with lightweight tools and objects. It is a poor choice if the project assumes substantial payload, industrial duty or precise unattended work without calibration and integration. A useful pilot would test the exact software stack, repeated positioning, tool control and safe recovery from an interrupted command. We have not conducted those tests. Compare with myPalletizer when four-axis pick-and-place is sufficient and with a larger platform when reach or payload is the real constraint. The best reason to buy this arm is a defined learning or prototyping project that fits its limits, not the general appeal of putting a robot on a desk.
Sources & further reading.
These are the sources behind this research review. Manufacturer claims are not independent performance measurements. Community accounts, when cited, describe individual experiences.
- Elephant Robotics myCobot 280 M5 — official product information ↗manufacturer
- myCobot 280 M5 product introduction ↗manual
Documentation reviewed: 9 October 2026. Product software and regional bundles can change. Corrections and editorial disclosures.
